Description

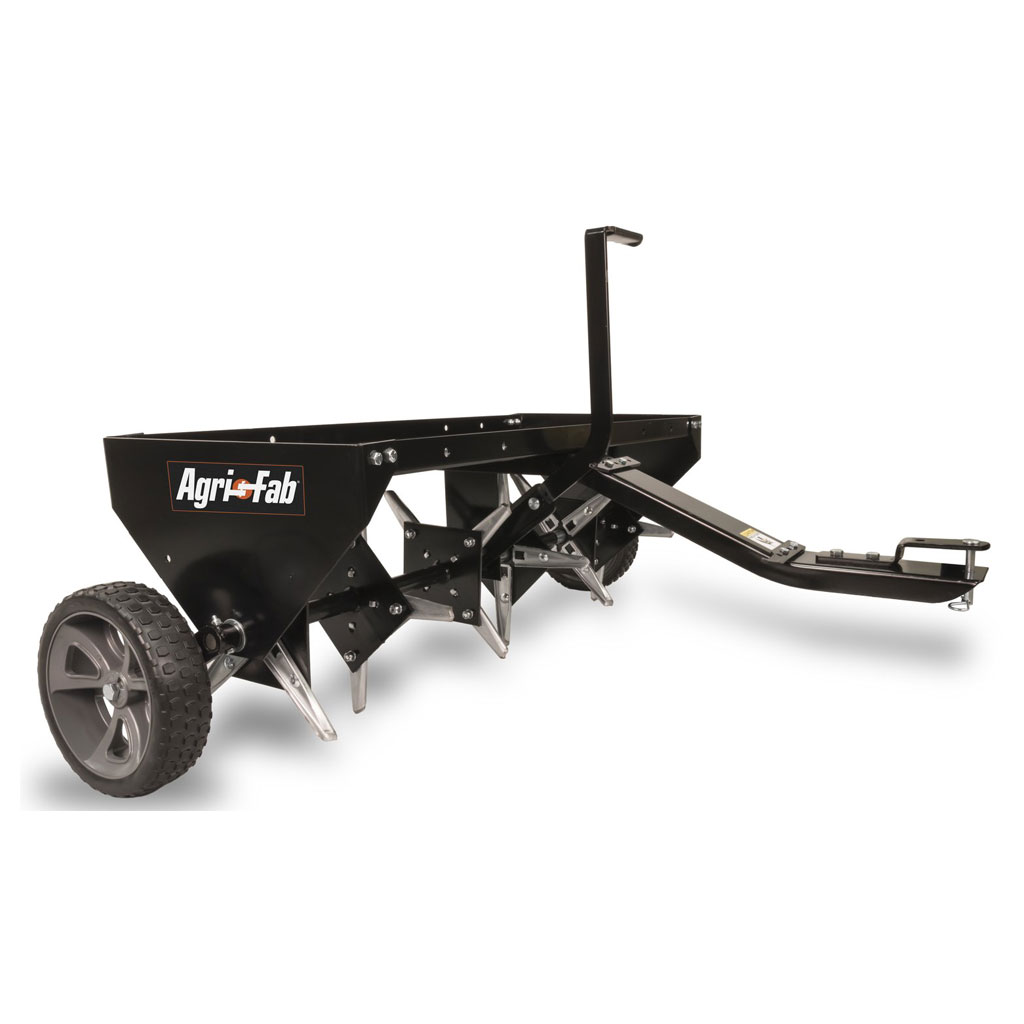

- Description: Agri-Fab 40″ (1016 mm) Tow-Behind Plug Aerator
- Editorial: Aerate compacted soil to promote new grass growth and enjoy a golf course like
- lawn. Ideal for use with many brands of lawn tractor type ride-on lawn mowers
- including but not limited to selected Cox, Craftsman, Dixon, Greenfield, Husqvarna,
- John Deere, Jonsered, McCulloch, MTD, Murray, Poulan Pro and Rover ride-on lawn
- mower models etc.
- Aerating means pulling small soil plugs, ranging up to three inches in length, from
- the soil to create small reservoirs that will bring oxygen, fertilizer and water
- down into the roots. For best aerator performance, the following lawn preparations
- and operating procedures are recommended.
- OPERATION: CAUTION: POINTS OF AERATOR KNIVES ARE SHARP! EXERCISE CAUTION AT ALL
- TIMES WHILE USING THE AERATOR.
- 1. Mow lawn and remove loose clippings prior to use of lawn aerator.
- 2. Start the lawn tractor engine with controls in neutral and place throttle at a
- slow engine speed.
- 3. Engage shift lever at the lowest possible forward speed and lower aerator,
- allowing plugger points to enter the ground. Increase speed as conditions permit.
- 4. Aerate in the straightest line possible, making overlapping passes to increase
- the plugger point pattern.
- 5. Avoid extremely sharp turns with plugger points engaged in ground to prevent
- damage to lawn.
- 6. DO NOT cross over foot paths or drive ways without first raising the aerator to
- the transport position.
- 7. On sloped lawns, always aerate in an up and down direction. DO NOT attempt to
- follow the contour of the ground.
- 8. To increase the depth of plugger point penetration, up to 140 lb (63.5 Kg) of
- weight, such as bags of sand or (4) concrete blocks, may be added to the tray. The
- weight can be secured to the tray with ties or straps fastened to the front and
- rear of the tray. Fasten so that the ties or straps cannot become entangled on
- rotating parts.
- 9. If the ground is extremely hard and dry, it is recommended that it be sprinkled
- or watered down for one or two hours prior to aerating.
- 10. DO NOT attempt to aerate if ground is too wet, (muddy).
- 11. Due to small rocks and gravel which are normally present in aerated soil plugs,
- it is recommended that the plugs be raked; otherwise damage to the lawn mower
- blades may arise, especially when reel type mowers are used.
- Replaces OEM: Agri-Fab 45-05182
- Carton Size: (inches) 43.0″ x 17.6″ x 8.6 (L x W x H)
- Carton Size: (mm) 1092 mm x 447 mm x 218 mm (L x W x H)
- Height: (inches) 24″
- Height: (mm) 610 mm
- Length: (inches) 50″
- Length: (mm) 1270 mm
- Weight: 79 lbs (36.83 kg)
- Width: (inches) 39″
- Width: (mm) 990.6 mm
- Fits: Ideal for use with many brands of lawn tractor type ride-on lawn mowers including
- but not limited to selected Cox, Craftsman Garden series, Lawn Series, Professional
- Series and Yard Series, Dixon D series, Greenfield, Husqvarna CTH, GTH, LR, LT,
- LTH, YTH, TC and TS series, John Deere CR, D100, L, LT, LX and X series, Jonsered
- GT, LGT and YT series, McCulloch, MTD Yard Machines and Yard-Man series, Murray,
- Poulan Pro PP series and Rover etc. lawn tractor type ride-on lawn mower models.
- Features: 24 knives to penetrate the soil.
- Knives are manufactured from 12 gauge galvanised steel.
- Transport handle for easy raising and lowering of the aerator knives.
- Pulls plugs up to 3 inches deep for thicker and healthier lawn.
- Tray is 40″ x 16″ (1016 mm x 406 mm) and manufactured from 13 guage steel then
- powder coated.
- Flat free tyres for smooth transport.
- Standard Pack Quantity: 1
- Please Note: Required tow hitch height is between 7″ to 12″ (178 mm to 304 mm)
- Recommended towing speed 3 mph (4.82 kph)
- Due to idle speeds (ground speed) this aerator is designed for use with lawn
- tractors and is not for use with ZTR’s or four wheelers.
- To avoid damage, the knives must be raised prior to making a turn.
- Reversing (backing up) is not recommended when the plug aerator is fully loaded.
- Additional weight of up to 140 lb (63.5 Kg), such as bags of sand or concrete
- blocks, can be placed on the tray to increase depth of point penetration. Always
- secure weight to the tray with ties or straps fastened to the front and rear of the
- tray. Fasten so that the ties cannot become entangled in rotating parts.
- If the ground is extremely hard and dry, it is recommended that it be sprinkled or
- watered down for one or two hours prior to aerating.
- Brand: Agri-Fab
- Product Line: Aerator – Plug Type, Plug Aerator,
