Description

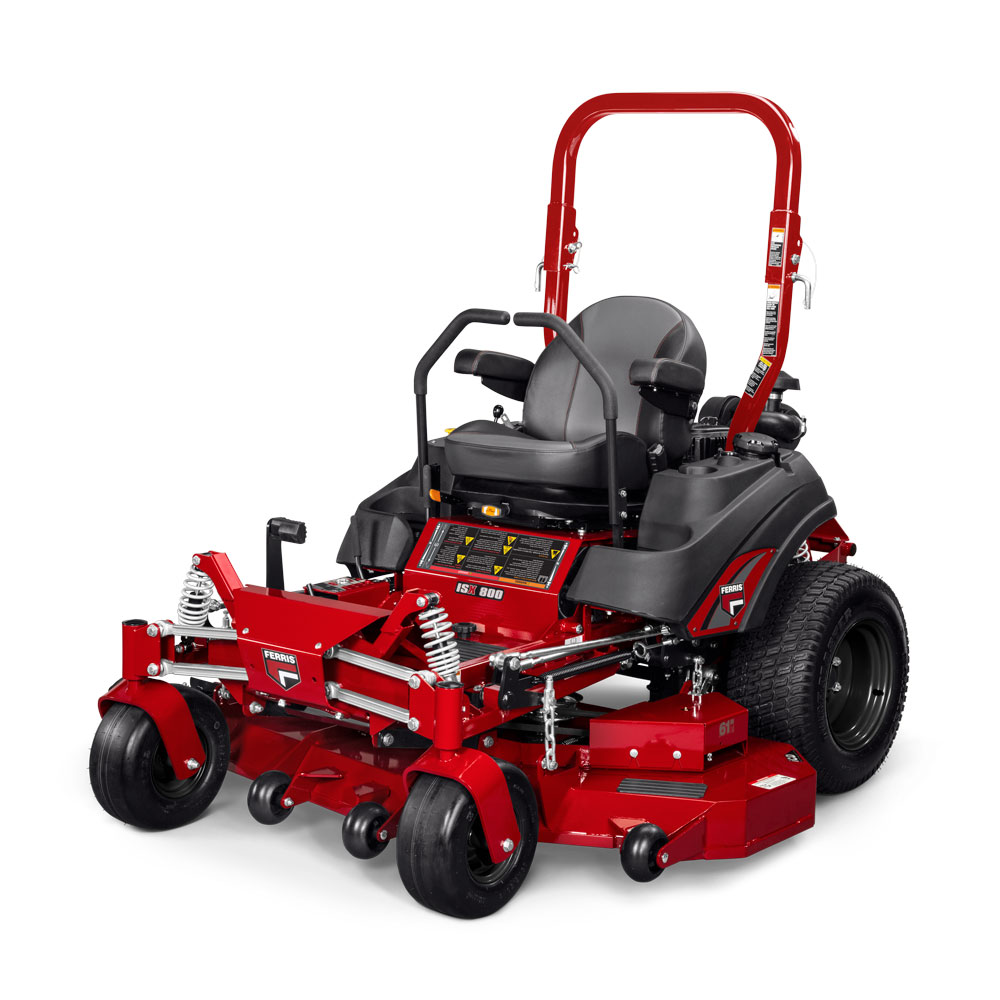

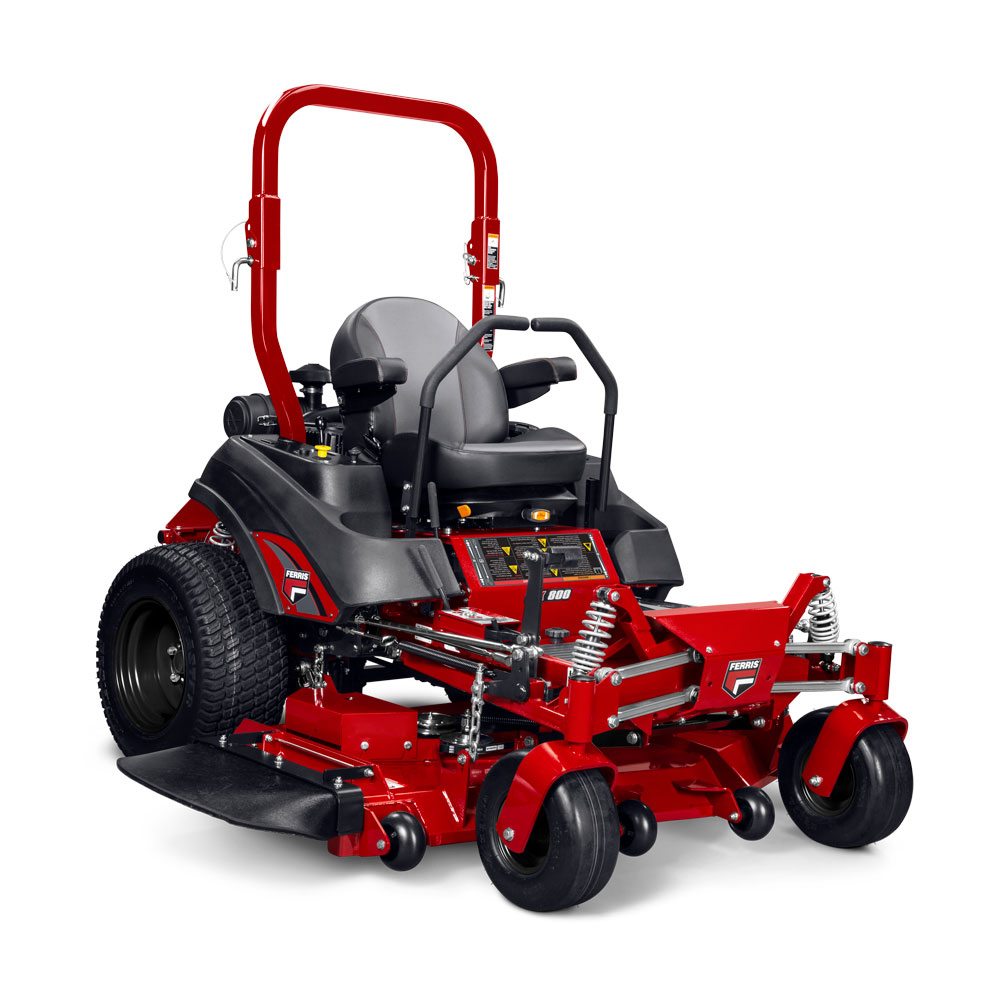

ISX™ 800 Zero Turn Mowers
Part Number
5902020
Engine Brand
Briggs & Stratton® Commercial Series - EFI ETC
Engine Power Rating (HP) *
27
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
20.8
Cutting Width in(cm)
52 (132)
Cutting Height in(cm)
1.5 - 5 (38 - 127)
Spindles
Aluminium Greaseable
Deck Construction
iCD™ Cutting System, 2-belt
Suspension
ForeFront™ Suspension System - Front independent with four cast-iron control rods paired with medium size adjustable coil-over shocks and a rear swing-arm with large adjustable coil-over shocks
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Axles (in)
1.125
Caster Tyres (in)
13 x 6.5 - 6
Drive Tyres (in)
23 x 10.5 - 12
Ground Speed-Fwd (kph)
0 - 16.1
Ground Speed-Rev (kph)
0 - 8.1
Overall Length (mm)
2058
Overall Width (mm) Deflector Down / Up
1651 / 1448
Dry Weight (kg)
508
Seat Package
Premium mid back adjustable suspension seat with armrests
Instrumentation
Dual-function hour meter, fuel level gauge in tank
ROPS
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
Part Number
5902038
Engine Brand
Briggs & Stratton® Commercial Series - EFI ETC
Engine Power Rating (HP) *
27
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
20.8
Cutting Width in(cm)
61 (155)
Cutting Height in(cm)
1.5 - 5 (38 - 127)
Spindles
Aluminium Greaseable
Deck Construction
iCD™ Cutting System, 2-belt
Suspension
ForeFront™ Suspension System - Front independent with four cast-iron control rods paired with medium size adjustable coil-over shocks and a rear swing-arm with large adjustable coil-over shocks
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Axles (in)
1.125
Caster Tyres (in)
13 x 6.5 - 6
Drive Tyres (in)
23 x 10.5 - 12
Ground Speed-Fwd (kph)
0 - 16.1
Ground Speed-Rev (kph)
0 - 8.1
Overall Length (mm)
2108
Overall Width (mm) Deflector Down / Up
1905 / 1613
Dry Weight (kg)
543
Seat Package
Premium mid back adjustable suspension seat with armrests
Instrumentation
Dual-function hour meter, fuel level gauge in tank
ROPS
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
