Description

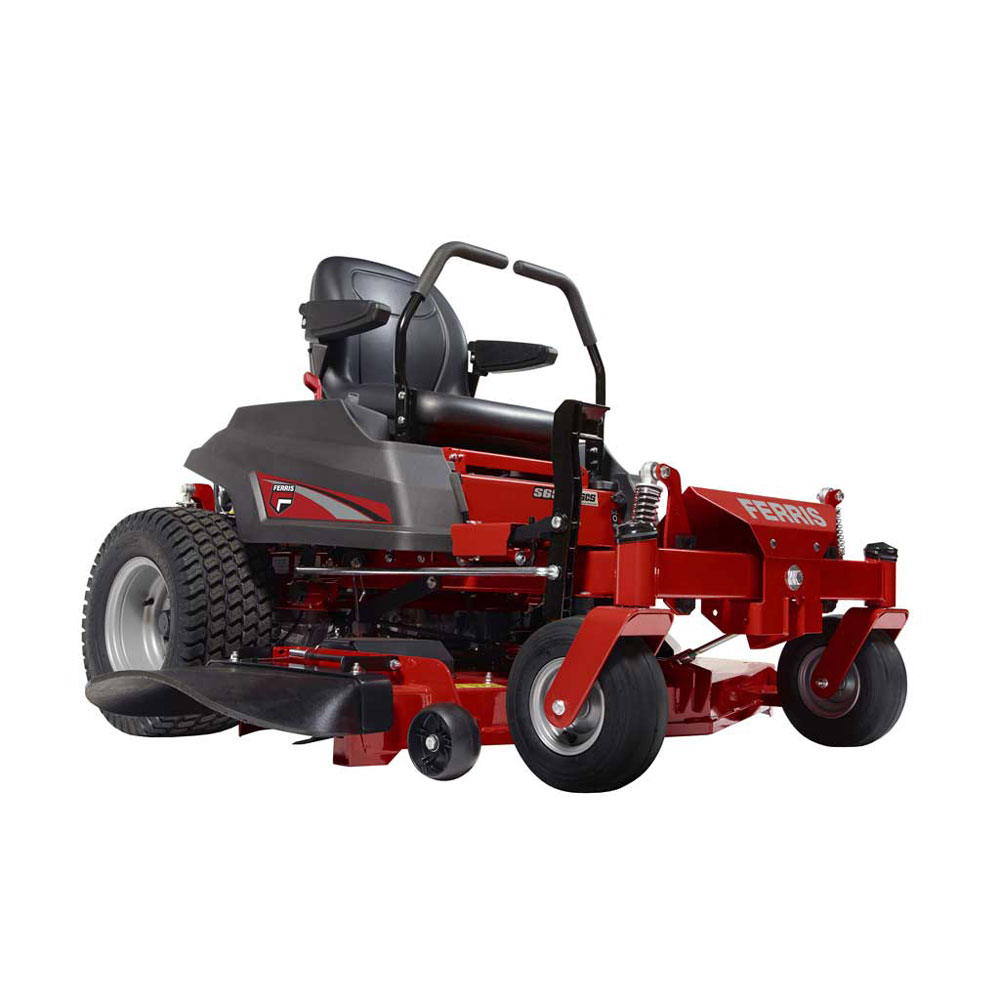

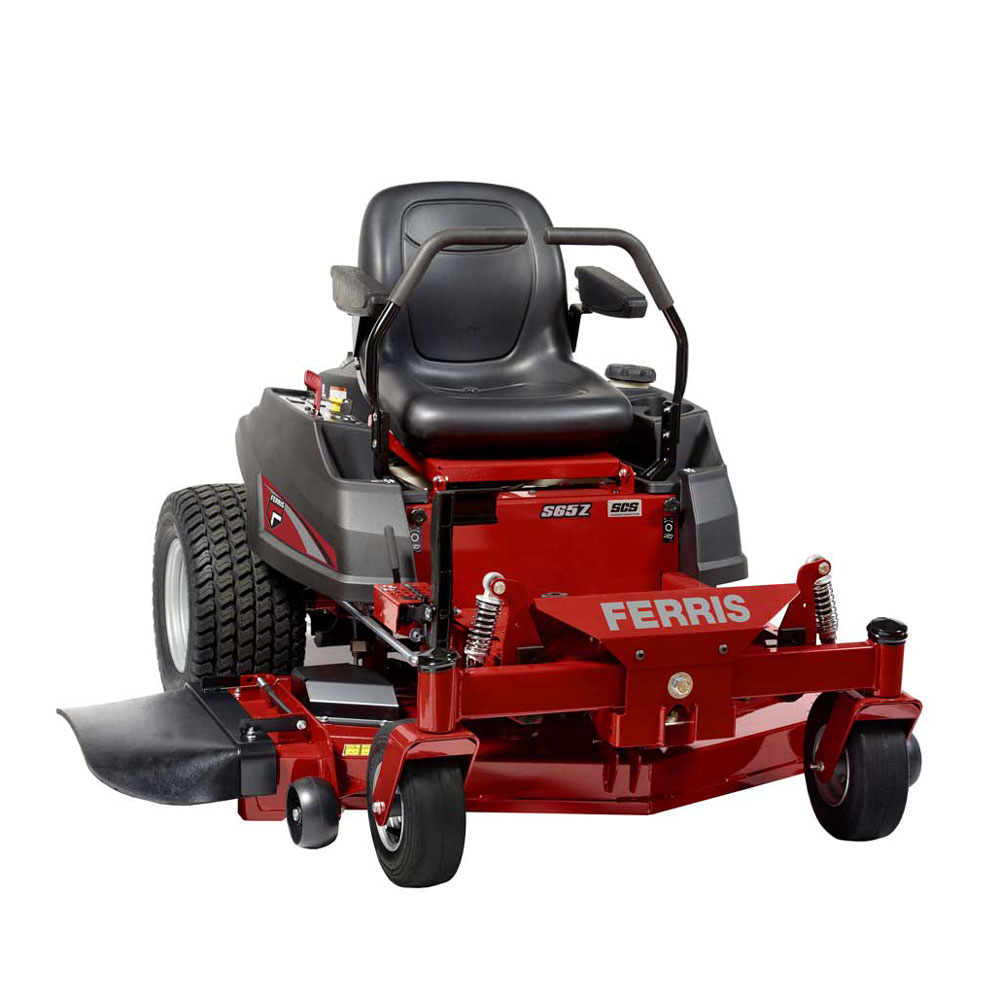

S65Z Series Zero Turn Mower
Part Number
2691384
Engine Brand
Briggs & Stratton® Commercial Series
Engine Power Rating (HP) *
25
Displacement (cc)
724
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
11.4
Cutting Width in(cm)
42 (106)
Cutting Height in(cm)
1.5 - 4.5 (38 - 144)
Spindles
Aluminium greaseable
Deck Construction
12-gauge fabricated
Suspension
Front coil-over shocks
Transmission
Dual Hydro-Gear® ZT-2800® Premium transmissions with charge pumps
Drive Axles (in)
1.00
Caster Tyres (in)
11 x 4 - 5
Drive Tyres (in)
20 x 7 - 10
Ground Speed-Fwd (kph)
0 - 12.8
Ground Speed-Rev (kph)
0 - 6.43
Overall Length (mm)
1867
Overall Width (mm) Deflector Down / Up
1400 / 1120
Dry Weight (kg)
342
Seat Package
Contour with armrests
Instrumentation
Fuel level gauge, hour meter
ROPS
Not Available
Controls / Safety Group
Adjustable twin fold out 1" tubular steering levers with comfort grip
Parking Brake / Safety Circuit
Integrated transaxle brake
Warranty (Engine) †
3-Year commercial limited manufacturer's warranty
Warranty (Balance of Machine) †
3-Year Limited OR 565 hours, whichever comes first.
